2G/3G/4G LTE /5G FPC Antenna, AH3G.204 (PN AH3G.204) is a fpc/flex antenna operating at 824MHz–2.7GHz for 4G LTE routers and gateways. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.
| Property | Specification |
|---|---|
| Frequency | 824~2700 MHz |
| Impedance | 50Ω |
| VSWR | ≤2.5 |
| Gain | 1.5 dBi |
| Polarization | Vertical / Omni |
| Property | Specification |
|---|---|
| Conn&Cable | FPC, 1.13 cable ,IPX |
| Material&Color | Copper |
| Mounting | IPX connector |

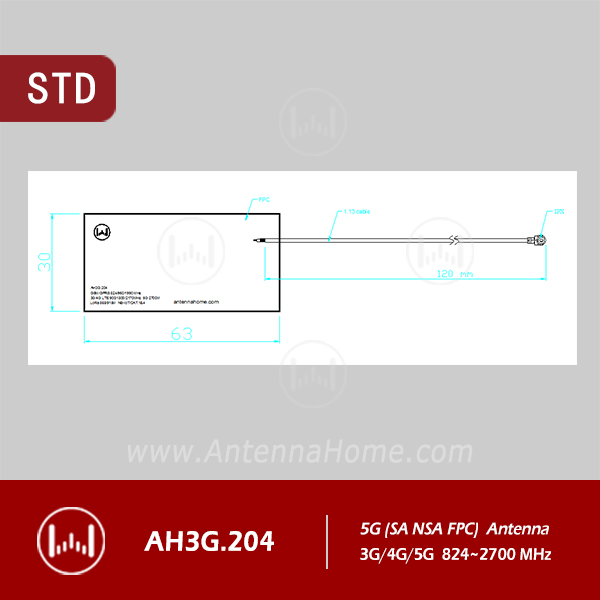

| Size | W30.0 x L63.0 mm |
| Weight | 1.0 g/pcs |
| Operate Temp | -40 ~ +85 ℃ |
