RF CABLE ASSY

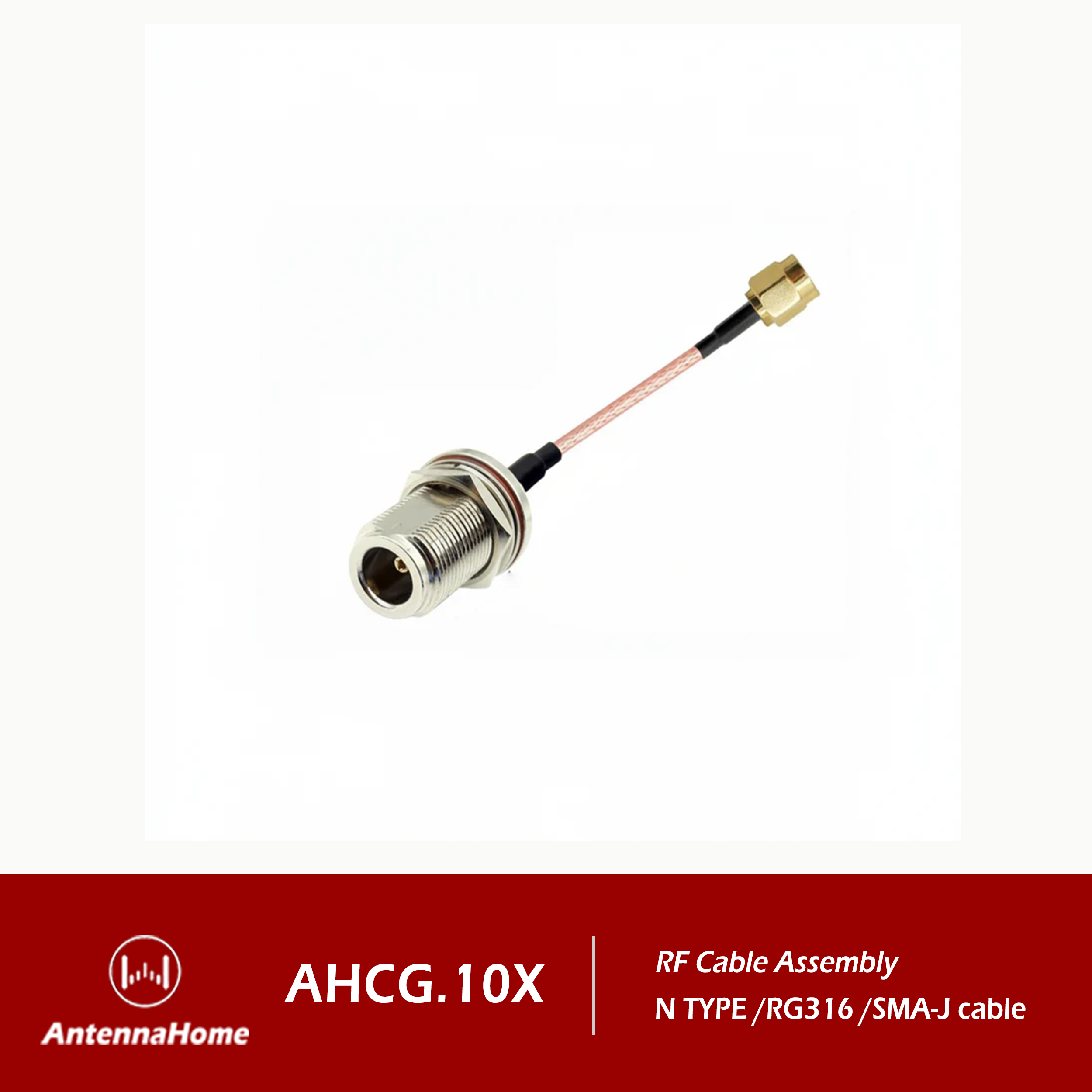

N TYPE connector L23, RG316 150mm, SMA-J cable

  • 料号/PN：AHCG.108
  • 频率/Frequency：0~6GHz
  • 重量/Weight：16g/pcs
  • 包装/Package：PE bag
  • INQUIRY

N TYPE connector L23, RG316 150mm, SMA-J cable (PN AHCG.108) is an antenna operating at 0~6GHz with SMA connector for Bluetooth LE devices. The key ordering parameters are listed below. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Key ordering specifications
PropertySpecification
Part NumberAHCG.108
Frequency0~6GHz
Weight16g/pcs
PackagePE bag
CategoryRF CABLE ASSY

Full electrical and mechanical datasheet on request — ask our engineers.

Download

DataSheet: https://docs.antennahome.com/ant/AHCG.108.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AHCG.108 cover?
AHCG.108 covers 0~6GHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
Which connector does AHCG.108 use?
AHCG.108 is supplied with SMA or N-Type connectors. Other connector types and custom cable lengths are available on request.
How is AHCG.108 packed and shipped?
For AHCG.108, unit weight is 16g/pcs and standard packaging is PE bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
