GPRS /3G-WCDMA /4G-LTE /5G ANT

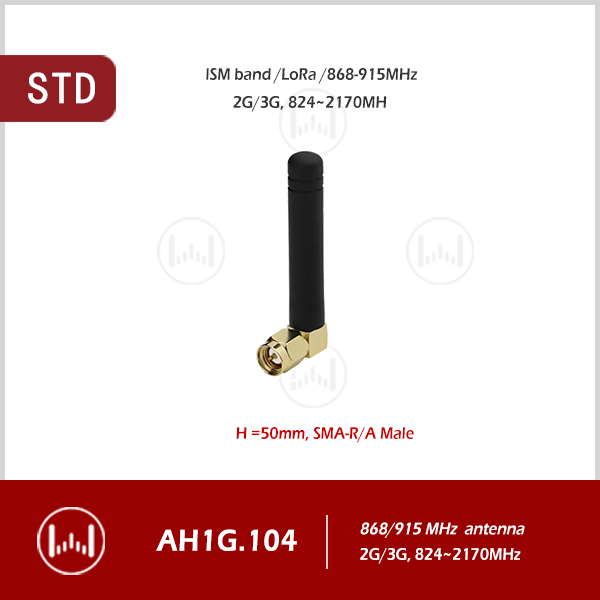

GSM/3G, H50 Rubber SMA-R/A , antenna

  • 料号/PN：AH1G.104
  • 频率/Frequency：824~2170MHz
  • 重量/Weight：13 g/pcs
  • 包装/Package：PP bag
  • INQUIRY

GSM/3G, H50 Rubber SMA-R/A , antenna (PN AH1G.104) is a rubber whip antenna operating at 824MHz–2.17GHz with SMA connector for GPRS /3G-WCDMA /4G-LTE /5G ANT applications. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
Frequency868/915 MHz,900/1800MHz
Impedance50Ω
VSWR≤2.5
Gain1.5 dBi
PolarizationVertical / Omni

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&CableSMA-JW
Material&ColorCopper / ABS
MountingSMA connector
Size¢8×H48 mm
Weight5.7 g/pcs
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AH1G.104.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AH1G.104 cover?
AH1G.104 covers 824~2170MHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
Which connector does AH1G.104 use?
AH1G.104 is supplied with SMA connector. Other connector types and custom cable lengths are available on request.
How is AH1G.104 packed and shipped?
For AH1G.104, unit weight is 13 g/pcs and standard packaging is PP bag. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
