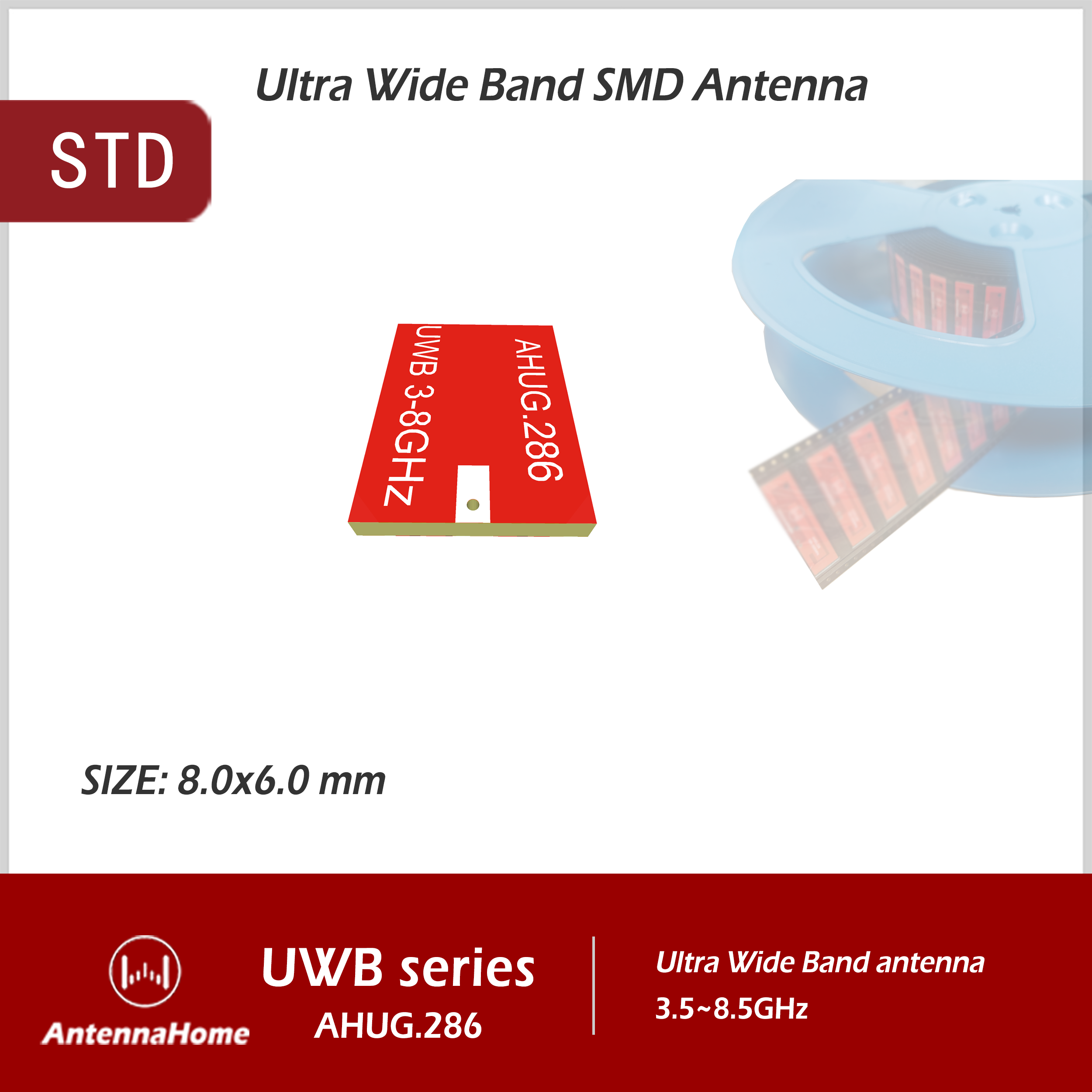

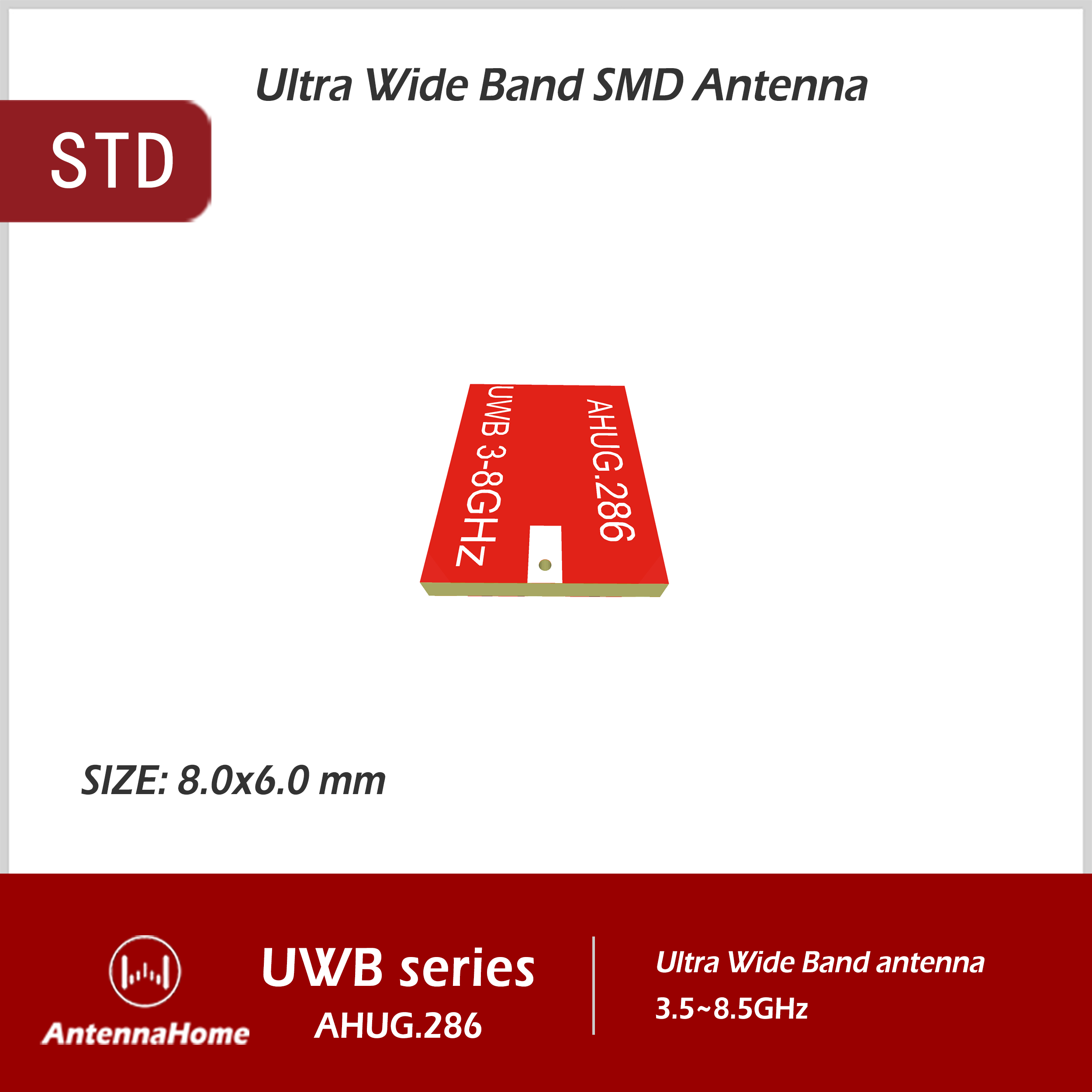

UWB CHIP SMD antenna, AHUG.286, PDOA, TDOA, Decawave, DW1000, DW3000. AHUG.286 (PN AHUG.286) is a smd chip antenna operating at 3.5GHz–8.5GHz for UWB ranging and location systems. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.
Key Specifications
Electrical Properties
Electrical Properties
| Property | Specification |
|---|
| Frequency | 3.5 ~ 8.5 GHz |
|---|
| Impedance | 50Ω |
|---|
| VSWR | ≤2.0 |
|---|
| Gain | 3.5 dBi |
|---|
| Polarization | Vertical / Omni |
|---|
Mechanical Properties
Mechanical Properties
| Property | Specification |
|---|
| Conn&Cable | HIGH Q Material |
|---|
| Material&Color | PCB/Copper |
|---|
| Mounting | SMD |
|---|
| Size | L8.0 x W6.0 x T1.2 mm 3000pcs/Reel |
|---|
| Weight | 0.6 g/pcs; |
|---|
| Operate Temp | -40 ~ + 85 ℃ |
|---|
Frequently Asked Questions
What frequency range does AHUG.286 cover?
AHUG.286 covers 3.5~8.5GHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
How is AHUG.286 packed and shipped?
For AHUG.286, unit weight is 0.8 g/pcs and standard packaging is Tape Reel. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
