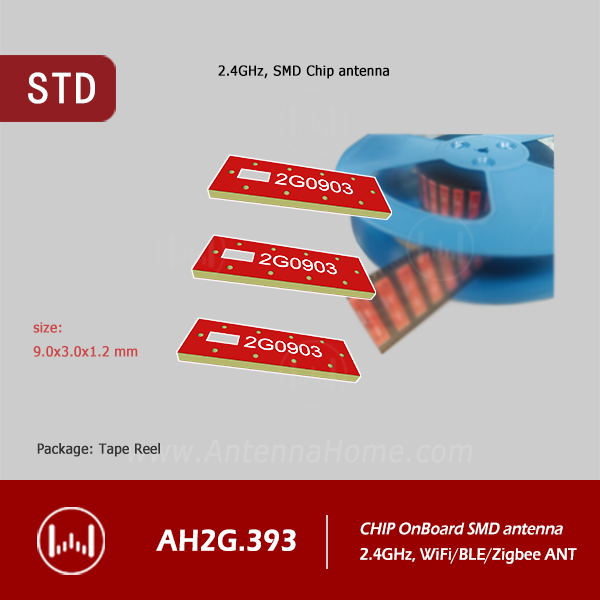

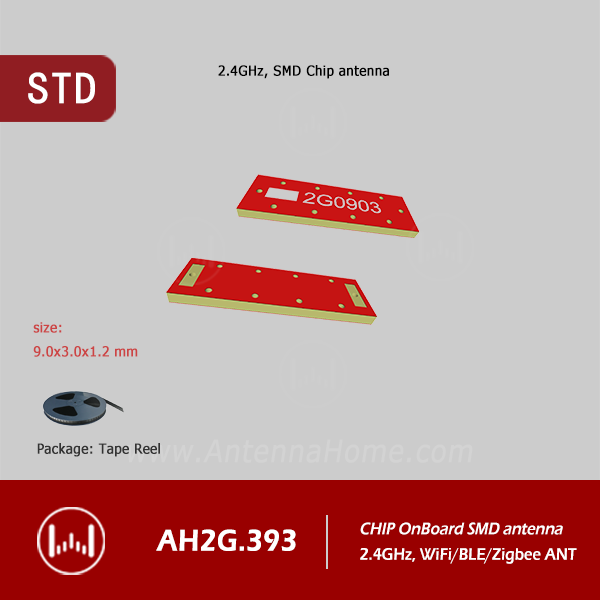

2.4GHz,SMD CHIP Antenna, WiFi/BLE/Zigbee, 9.0x3.0x1.2mm, AH2G.393 (PN AH2G.393) is a smd chip antenna operating at 2.4GHz for 4G LTE routers and gateways. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.
Key Specifications
Electrical Properties
Electrical Properties
| Property | Specification |
|---|
| Frequency | 2.4GHz / 5.8GHz |
|---|
| Impedance | 50Ω |
|---|
| VSWR | ≤2.0 |
|---|
| Gain | 2.0 / 3.0 dBi Typical |
|---|
| Polarization | Vertical / Omni |
|---|
Mechanical Properties
Mechanical Properties
| Property | Specification |
|---|
| Conn&Cable | / |
|---|
| Material&Color | Copper/Red |
|---|
| Mounting | SMD |
|---|

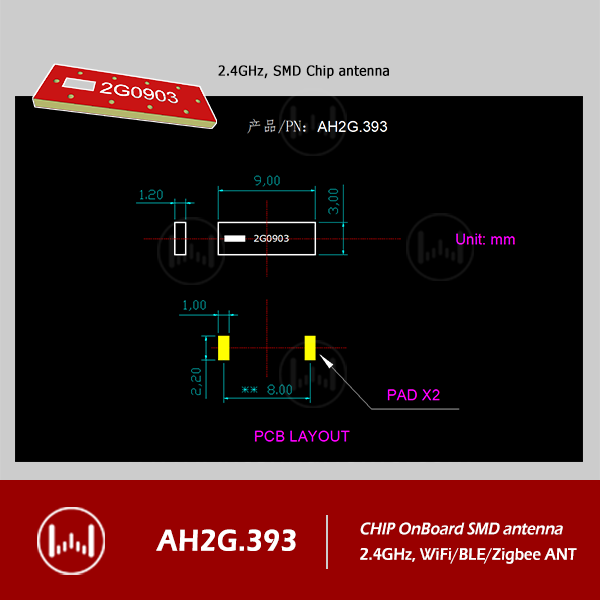

| Size | L9.0 xW3.0 xT1.2 mm |
|---|
| Weight | 0.4 g/pcs; 3000pcs/Reel |
|---|
| Operate Temp | -40 ~ +85 ℃ |
|---|
