Embedded SMD CHIP Antenna

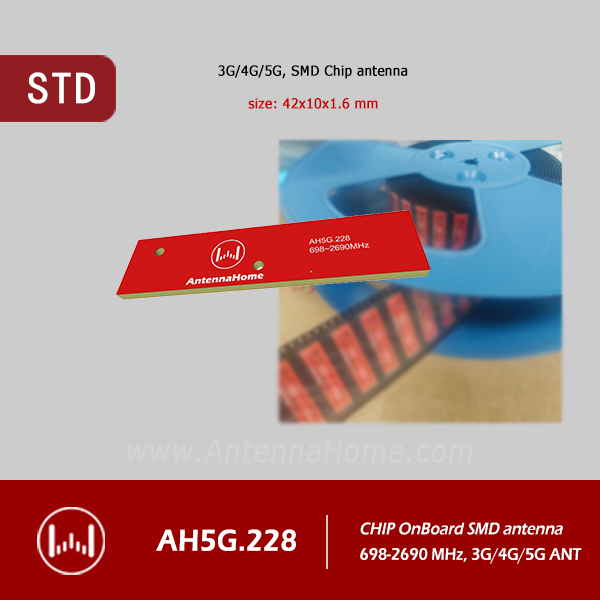

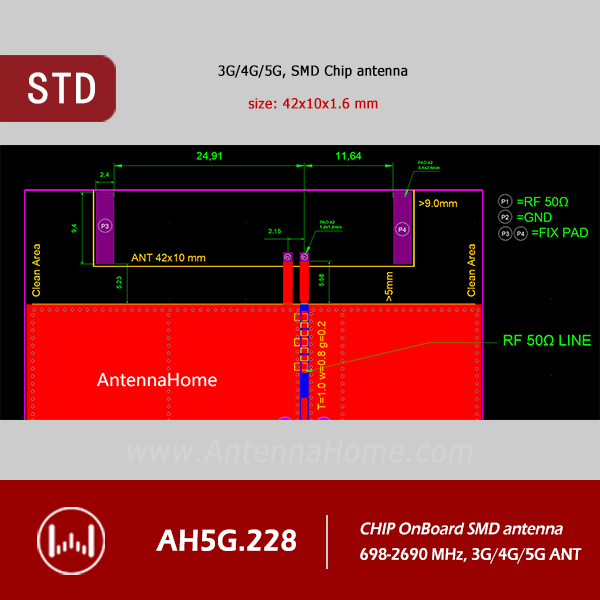

3G/4G/5G, 690~2690MHz, SMD, CHIP Antenna AH5G.228

  • 料号/PN：AH5G.228
  • 频率/Frequency：698-2690 MHz
  • 重量/Weight：42 x 10 x 1.6 mm

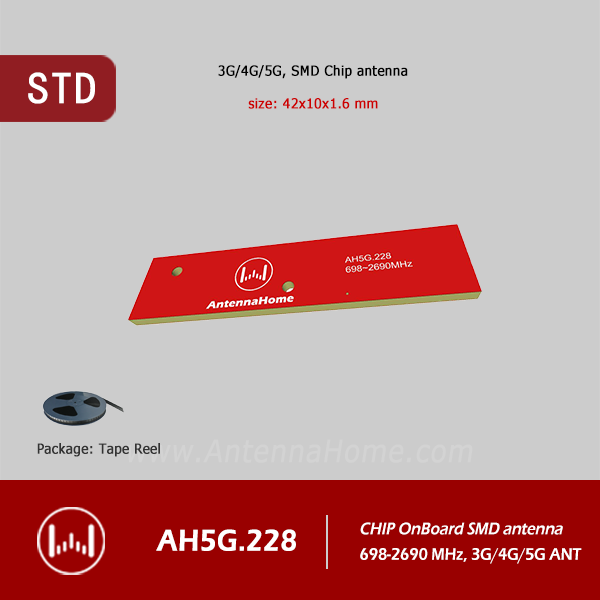

  • 包装/Package：Tape Reel
  • INQUIRY

3G/4G/5G, 690~2690MHz, SMD, CHIP Antenna AH5G.228 (PN AH5G.228) is a smd chip antenna operating at 698MHz–2.69GHz for 4G LTE routers and gateways. The specifications below are taken from its datasheet. Samples, custom cable lengths and OEM branding are available on request.

Key Specifications

Electrical Properties

Electrical Properties
PropertySpecification
Frequency690-960,1770-2690 MHz, 3G/4G/5G,NB-IoT,CAT.1&4
Impedance50Ω
VSWR≤2.5
Gain2.5/3.5 dBi
PolarizationVertical / Omni

Mechanical Properties

Mechanical Properties
PropertySpecification
Conn&Cable/
Material&ColorCopper/Red
MountingSMD

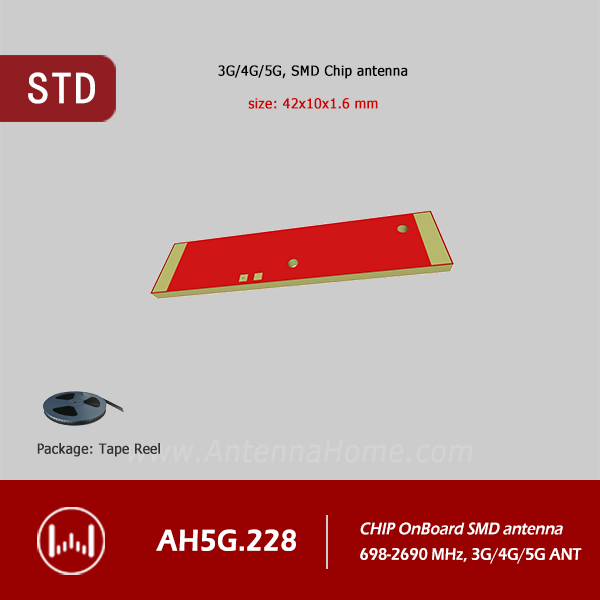

SizeL42 xW10 xT1.6 mm
Weight3.0 g/pcs; 1800pcs/Reel
Operate Temp-40 ~ +85 ℃

Download

DataSheet: https://docs.antennahome.com/ant/AH5G.228.pdf

Catalogue: https://docs.antennahome.com/ant/catalogue.pdf

Frequently Asked Questions

What frequency range does AH5G.228 cover?
AH5G.228 covers 698-2690 MHz. If your application needs a band outside this range, we can retune the matching network for your target frequency.
How is AH5G.228 packed and shipped?
For AH5G.228, unit weight is 42 x 10 x 1.6 mm and standard packaging is Tape Reel. Bulk packing and custom labelling are available for volume orders.
What is the minimum order quantity and lead time?
Standard models ship in 7–15 working days after order confirmation; samples of in-stock models can ship within 3 days. MOQ depends on the model — contact us for the exact figure for your part number.
Can AntennaHome customize an antenna for my device?
Yes. We provide customized design including frequency tuning, connector and cable length, housing and mounting method. Send us your enclosure drawing, available ground plane size and target bands, and our RF engineers will propose a design.
What certifications and test reports are available?
Products are RoHS and REACH compliant. We operate an in-house 3D anechoic chamber and can provide VSWR, gain and radiation pattern test reports for the specific part number you order.
